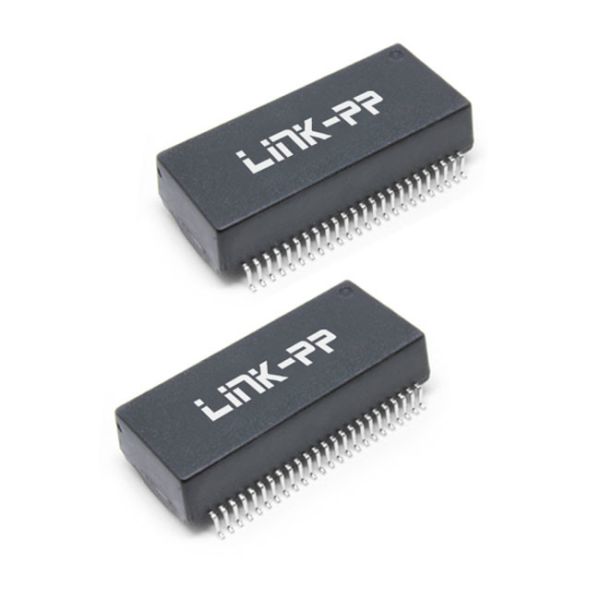

HXB4019HLT SMT Dual Port 2.5G PoE+ Ethernet Transformer Modules

Name: HXB4019HLT SMT Dual Port 25G PoE Ethernet Transformer Modules
Brand: LINK-PP
Price: 0.09 USD

Brand Name : LINK-PP

Model Number : HXB4019HLT

Certification : UL,ROHS,Reach,ISO

Place of Origin : CHINA

MOQ : 1pcs, free sample is available

Price : $0.09-$2.2

Payment Terms : TT, NET30/60/90 Days

Supply Ability : 6000K-PCS/Month

Delivery Time : within 1-2 weeks

Packaging Details : T&R

Product Series : HXB4019HLT Pulse Transformer

Mounting : SMT

Number of Channels/Ports : DUAL

PoE : PoE+ (4pr)

Operating Temperature : -40℃ to +85℃

Transformer Length : 32.8 mm

Transformer Width : 17.6 mm

Transformer Height : 7.3 mm

Contact Now

HXB4019HLT Description:

The HXB4019HLT is a high-performance Ethernet transformer designed to meet the demands of modern networking applications. With dual ports and support for 2.5GBASE-T data rates, this transformer is ideal for high-speed Ethernet connectivity. Featuring 90W PoE+ support, it is capable of delivering power over Ethernet to compatible devices. The compact SMD design and robust construction make it suitable for a wide range of Ethernet applications.

Specifications of 2.5Gigabit Ethernet Transformer:

Part Number	HXB4019HLT	Turns Ratio	1CT:1CT
Transformer Grade	Commercial grade	Isolation Voltage (V)	1500VAC
Mounting Type	Surface Mount	Media side inductance	180uH MIN @100KHz, 0.1V
Mounting Style	48 Pin SMD	Insertion Loss	-1.0dB MAX @ 1-100MHz -1.5dB MAX @ 125MHz
Data Rate	2.5GBASE-T	Return Loss	-16dB MIN @ 1-40MHz -(16-10 log10(f/40))dB MIN @ 40<f≤100MHz
Number of Channels/Ports	Dual Port	PoE	1000mA Current Per Pair
RoHS Status	Fully ROHS Compliant	Isolation	1500Vrms Pri: Sec
Halogen Free	YES	Note	Dual / 90W PoE+
Moisture Sensitive Level	1	Operating Temperature	-40 to +85°C
Maximum Peak Solder Temperature	245°C	Storage Temperature	-50 to +125°C

Features of HXB4019HLT 2.5G Transformer:

Dual port configuration
Standard 48 pin
High-speed 2.5G data rates
90W PoE+ support
Meet IEEE 802.3bt Standard
Idea for Commercial 2.5G Switches
High isolation and surge-compliant designs
Commercial operating temperature ranges from -40°C to +85°C
Backward compatible with Gigabit PHYs
Reliable SMD package

HXB4019HLT Schematic:

HXB4019HLT SMT Dual Port 2.5G PoE+ Ethernet Transformer Modules
