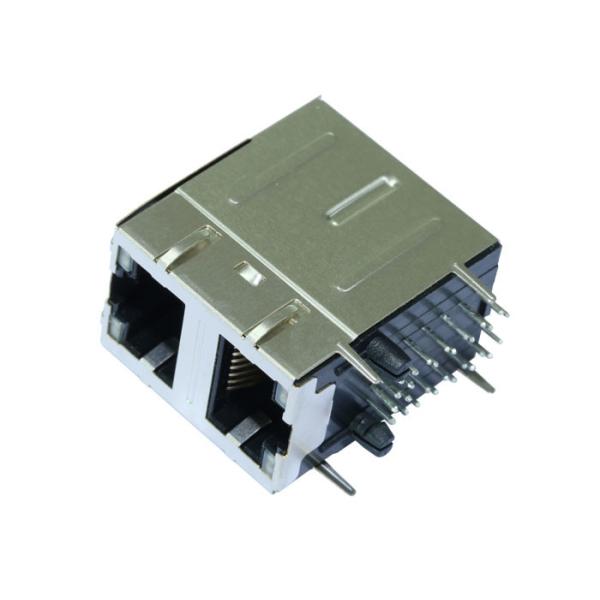

| XMH-21C-1-HD1-170 2X1 Rj45 Connectors With LED 8P8C Shielded LPJG17101ADNL |
| Part Number | XMH-21C-1-HD1-170 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Temperature | 0 TO + 70℃ |
| Diodes | NO DIODES |
| LED Option | YELLOW / GREEN |
| Shielding | Shielded, EMI Finger |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Latch | TAB UP / DOWN |
| Number of Ports | 2X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.665 |
| Package Height (mm) | 26.90 |
| Package Length (Inches) | 1.330 |
| Package Length (mm) | 33.80 |
| Package Width (Inches) | 0.661 |
| Package Width (mm) | 16.80 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
| LINK-PP Part Number | LPJG17101ADNL |
|
|
Quick Details
- 1000Mbps Transformer
- 2X1 Port Transformer Modules
- Coils: 16
- XMH-21C-1-HD1-170 Cross LPJG17101ADNL
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
