H4001CG Cross Quad Port 10/100Base-TX Transformer Modules LP1164NL

Name: H4001CG Cross Quad Port 10100BaseTX Transformer Modules LP1164NL
Brand: LINK-PP
Price: 0.06 USD

Brand Name : LINK-PP

Model Number : H4001CG

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Specification : H4001CG

Cross : SM-LP1164NL

Application : Industry Workgroup Switches

Pins : 40Pins

Port : Quad Port Transformers

Hipot : 1500V

Contact Now

H4001CG Cross Quad Port 10/100Base-TX Transformer Modules LP1164NL

H4001CG Transformer
Trader Part Number	H4001CG
Made in China	SM-LP1164NL
Manufacturer	LINK-PP China
Description	Rj45 Transformer 4 port 10/100BT
Documents Available	PDF/3D/Step/IGS/Price/Cross
Quantity Available	2,000 PCS or 4 weeks

Archivi Disponibili : DF/3D/ISG/Stp/Step/Datasheet

H4001CG Cross Quad Port 10/100Base-TX Transformer Modules LP1164NL

Electrical Specification @25℃

1.Turns Ratio(±5%):
TX=1CT∶1CT RX=1CT∶1CT
2.Insertion Loss:
0.1-100MHz:-1.0dB MAX
3.Return Loss(dB MIN):
2-30MHz:-18; 40MHz:-14.4
50MHz:-13.1; 60-80MHz:-12
4.Crosstalk(dB MIN):
0.1MHz:-55; 30MHz:-45
60MHz:-40; 100MHz:-33
5.DCMR(dB MIN):
1-60MHz:-37; 60-200MHz:-25
6.Hipot: 1500Vrms
7.Operating Temperature: 0℃～70℃.

H4001CG Cross Quad Port 10/100Base-TX Transformer Modules LP1164NL

Product Tags:

dual port transformer

quad port transformer

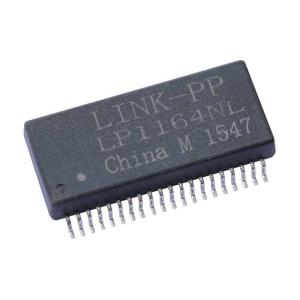

Cheap H4001CG Cross Quad Port 10/100Base-TX Transformer Modules LP1164NL for sale

H4001CG Cross Quad Port 10/100Base-TX Transformer Modules LP1164NL Images
