FTLX1341E2 | SFP+ Optical Transceiver 3.125Gbps 1310nm SC Pluggable, X2 MSA

Name: FTLX1341E2 SFP Optical Transceiver 3125Gbps 1310nm SC Pluggable X2 MSA
Brand: LINK-PP
Price: 0.11 USD

Brand Name : LINK-PP

Model Number : FTLX1341E2

Certification : ISO 9001,ISO 14001,UL,SGS,REACH168

Place of Origin : Guangdong,China

MOQ : 10/100/25K

Price : $0.11-$35

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 350K/Month

Delivery Time : Stock

Packaging Details : 20/Tray

Specifications : FTLX1341E2

Data Rate : 3.125 Gbps

Wavelength : 1310nm

Maximun Distance : 220m

Fiber Type : Singlemode Glass

Emitter : DWDM EML

Voltage : 3.3V,5V

Applications : Ethernet

Connector : SC

Mounting : Pluggable,X2 MSA

Environment : Lead free / RoHS Compliant

MSL : 1 (Unlimited)

Contact Now

FTLX1341E2 | SFP+ Optical Transceiver 3.125Gbps 1310nm SC Pluggable, X2 MSA

Specifications:	FTLX1341E2
Product Class:	Fiber Optics
Product Family:	Optical Transceivers
Product Series:	SFP+
Product Name:	SFP+ Optical Transceivers
Status Available:	Active
RoHS:	RoHS-6 Compliance

Specifications:
Data Rate:	3.125 Gbps
Wavelength:	1310nm
Maximun Distance:	220m
Fiber Type:	Singlemode Glass
Emitter:	DWDM EML
Voltage-Supply:	3.3V,5V
Applications:	Ethernet
Connector Type:	SC
Mounting Type:	Pluggable,X2 MSA
Lead Free Status / RoHS Status:	Lead Free / RoHS Compliant
Moisture Sensitivity Level(MSL):	1(Unlimited)

Feature Description:

● Hot pluggable X2 MSA form factor
● Total power consumption: 4.0 W maximum
● RoHS-6 compliant (lead-free)
● Temperature range 0°C to 70°C
● Transmission distance up to 220m*
● Uncooled 1310 nm directly modulated Fabry-Perot (FP) laser
● Built In Advanced Electronic Dispersion Compensation (EDC)
● SC connector, multimode fiber
● Full duplex transmission mode
● Digital Optics Monitoring (DOM) Power supply: +5.0 V, +3.3 V
● Adaptable Power Supply (APS: +1.2 V)
● XAUI electrical interface - 4 x 3.125 Gb/s Ethernet
● Management and control via MDIO 2-wire bus
● 70-pin connector
● Separated signal/chassis ground
● Mid Pak module variance for front panel mounting
● De-latch mechanism with low extraction force

Product Tags:

fiber sfp module

fiber optic transceiver

Cheap FTLX1341E2 | SFP+ Optical Transceiver 3.125Gbps 1310nm SC Pluggable, X2 MSA for sale

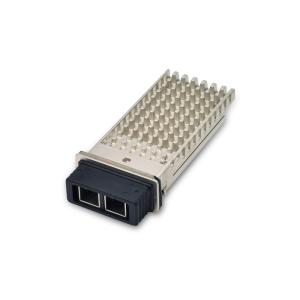

FTLX1341E2 | SFP+ Optical Transceiver 3.125Gbps 1310nm SC Pluggable, X2 MSA Images
