ON316655 XFMRS Rj45 With Built in Magnetics Gigabit Wireless Connector

Name: ON316655 XFMRS Rj45 With Built in Magnetics Gigabit Wireless Connector
Brand: LINK-PP
Price: 1 USD

Cheap ON316655 XFMRS Rj45 With Built in Magnetics Gigabit Wireless Connector for sale

Brand Name : LINK-PP

Model Number : ON316655

Certification : UL,ROHS,Reach,ISO

Place of Origin : China

MOQ : 50/500/1000

Price : Supportive

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4600K.PCS/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

PN : ON316655

Made In China : SM-LPJG16467A71NL

Family : Magnetics Rj45 Connector

Ethernet : Gigabit lan 10/100/1000

LEDs : Flexible

Hipot : 1500V

Contact Now

ON316655 XFMRS Rj45 With Built in Magnetics Gigabit Wireless Connector

ON316655 XFMRS

Trader Part Number

ON316655 XFMRS

Price Break	Unit Price	Extended Price
1-5	F-3	Free
10-50	C-2.5	-
100-500	N-2	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJG16467A71NL

Manufacturer

LINK-PP China

Description

Rj-45 With Magnetics

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

2,000 PCS or 4 weeks

ON316655 Electrical Specifications @25℃

1.OCL(100KHz 0.1V 8mA): 350uH Min
2.Turns Ratio: 1CT∶1CT %%P3%P3.Insertion Loss:
1-100MHz:-1.1dB Max
4.Return Loss(dB Min):
1-40MHz:-18 60MHz:-14
80MHz:-12 100MHz:-10
5.Crosstalk:
1-100MHz:-35 dB Typ
6.Common Mode Rejection:
0.1-30MHz:-50 dB Typ
30-60MHz:-40dB Typ
60-100MHz:-35dB Typ
7.Isolation: 1500Vrms
8.Operating Temperature: -40℃～+85℃

Product Tags:

stacked rj45 connectors

rj45 magnetic jack

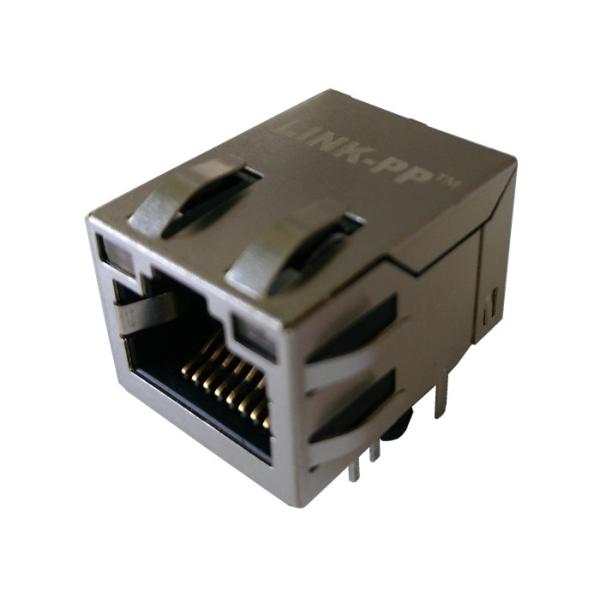

ON316655 XFMRS Rj45 With Built in Magnetics Gigabit Wireless Connector Images
