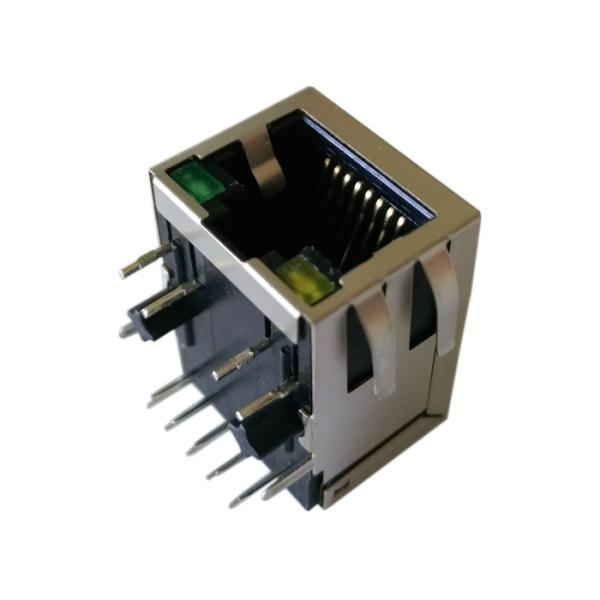

10Pin Gigabyte Rj45 Jack 5-6605435-8 With Integrated Magnetics and Leds

Name: 10Pin Gigabyte Rj45 Jack 566054358 With Integrated Magnetics and Leds
Brand: LINK-PP
Price: 0.05 USD

Brand Name : LINK-PP

Model Number : 5-6605435-8

Certification : UL,ROHS,Reach,ISO

Place of Origin : China

MOQ : 50/500/1000/25K

Price : $0.05-$1.28

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4200K-PCS/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

Designe PN# : 5-6605435-8

Made In China : SM-LPJG0XXXGENL

Family : Rj45 Gigabit Jack

Interface : 10/100/1000Mbps

LED : Green&Yellow

Samples : Available

Contact Now

10Pin Gigabyte Rj45 Jack 5-6605435-8 With Integrated Magnetics and Leds

5-6605435-8 Jack

Trader Part Number

Tyco 5-6605435-8

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJG0XXXGENL

Manufacturer

LINK-PP China

Description

Angled Rj45 Connector

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

2,000 PCS or 4 weeks

5-6605435-8 ELECTRICAL SPECFICATIONS @25℃
1.Inductance:
350uH min, 100KHz, 100mV, 8mADC,
J1-J2;J3-J6;J4-J5;J7-J8, LP.
2.Return Loss(dB Min):
1-40MHz:-18 40-60MHz:-14
60-80MHz:-12 80-100MHz:-10
3.Crosstalk:
1-100MHz:-30dB Min
4.Insertion Loss:
1-100MHz:-1.0dB Max
5.CMR:
1-100MHz:-35dB Min
6.Turns Ratio:
1CT∶1CT
7.Isolation Voltage: 1500Vrms/60Hz
8.Operating Temperature Range: 0℃-70℃.
