Name: Replacement 7499511002A POE Magnetic RJ45 Connector LPJK6069CNL
Brand: LINK-PP
Price: 0.09 USD

Place of Origin : China

Brand Name : LINK-PP

Certification : SGS, UL,CE,ISO9001

Model Number : LPJK6069CNL

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Packaging Details : Tray, Tape & Reel

Delivery Time : Stock

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000K/month

Customer PN : 7499511002A

Ethernet : Giagbit POE Applications

Port Config : 1x1 Female Jack

Magnetic : Integrated

LEDs : No

Samples : Free

Cross Rf : 7499511002A = LPJK6069CNL

Contact Now

Replacement 7499511002A CONN MAGJACK 1PORT 1000 BASE-T

1.Isolation1500Vrms

2.Side Entry Gigabit rj45 Port
3.IEEE802.3af/at Standards
4.Application : PC Mainboard, SDH, PDH

Shielded 1x1 Port RJ45 Female Connector with 10/100 Base-T Integrated Magnetics & PoE+ ,without LED,Tab UP,RoHS
LINK-PP Part Number	LPJK6069CNL
WE Part Number	7499511002A
Application-Lan	ETHERNET(PoE+)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	12
Diodes	NO DIODES
LED Option	Without LEDs
Latch	TAB UP
Number of Ports	1X1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST

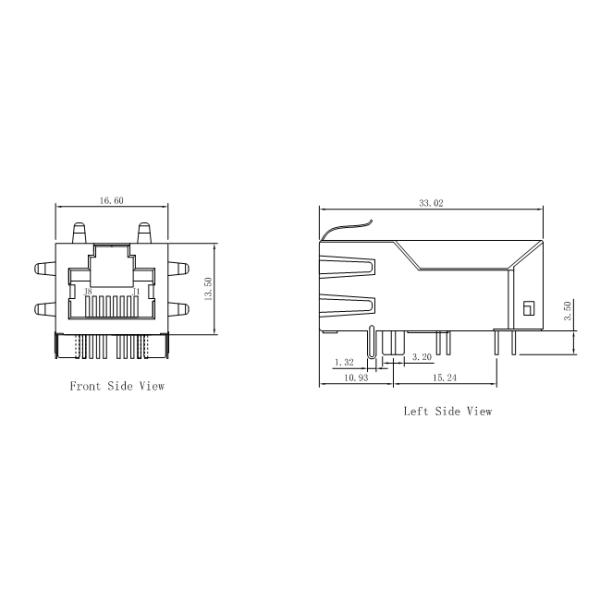

Package Height (Inches)	0.531
Package Height (mm)	13.50
Package Length (Inches)	1.261
Package Length (mm)	32.02
Package Width (Inches)	0.654
Package Width (mm)	16.60
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	With
Speed	10/100 BASE-T
Temperature	-40 TO + 85℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

Replacement 7499511002A POE Magnetic RJ45 Connector , LPJK6069CNL
